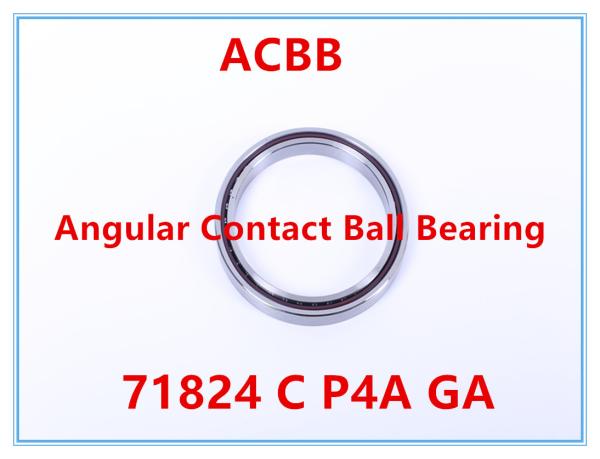

71824 C P4A GA Angular Contact Ball Bearing

Name: 71824 C P4A GA Angular Contact Ball Bearing
Brand: ACBB
Price: 1 USD

China 71824 C P4A GA Angular Contact Ball Bearing factory

Brand Name : ACBB

Model Number : 71824 CP4A GA

Certification : ISO9001 IATF16949

Place of Origin : China

MOQ : 30 PCS

Packaging Details : Company brand packaging.

Product name : Angular Contact Ball Bearing

Product model : 71824 C P4A GA

Characteristic : High speed and high rigidity

Rotational speed : 6000RPM-7000RPM

Angle : C/CD/AC/A5/ACD/A5/E

Preload : Light preload

Rolling Body : Steel Ball

Holder : Bakelite holder

Contact Now

Angular Contact Ball Bearing 71824 C P4A GA (in addition to DB, DT, TBT, QBC and other matching methods) is mainly used on high-speed motor spindles. The operating speed reaches 6000 to 7000 rpm. Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease are used, which have the advantages of high rigidity, high precision, high speed, etc.

718 Series Angular Contact Ball Bearing
Bearing No	Dimensions(mm)			rsmin	rs1min	(KN) BasicRatedload		(RPM) Ball speed limit		(RPM) Ceramic Ball limit speed		(N) Preload
Bearing No	d	D	B	rsmin	rs1min	Cr	Cor	Grease Lubrication	Oil Lubrication	Grease Lubrication	Oil Lubrication	A	B	C
71820C	100	125	13	1.00	0.30	21.60	25.00	9500	16000	12000	19000	91	341	735
71820AC	100	125	13	1.00	0.30	20.40	23.60	8500	14000	10000	17000	109	500	1132
71821C	105	130	13	1.00	0.30	22.80	27.50	9000	15000	12000	19000	95	358	774
71821AC	105	130	13	1.00	0.30	21.60	25.50	8000	13000	10000	17000	112	525	1193
71822C	110	140	16	1.00	0.30	31.50	36.50	8500	14000	11000	18000	146	521	1105
71822AC	110	140	16	1.00	0.30	29.00	34.00	7500	12000	9000	15000	181	757	1673
71824C	120	150	16	1.00	0.30	32.00	39.00	7500	12000	10000	17000	146	527	1119
71824AC	120	150	16	1.00	0.30	30.00	36.00	7000	11000	8500	14000	184	779	1725

71824 C P4A GA Angular Contact Ball Bearing

Product Tags:

71824 Angular Contact Ball Bearing

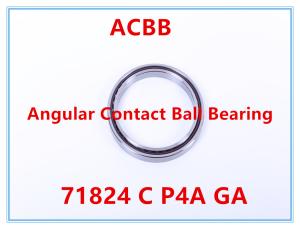

71824 C P4A GA Angular Contact Ball Bearing Images
