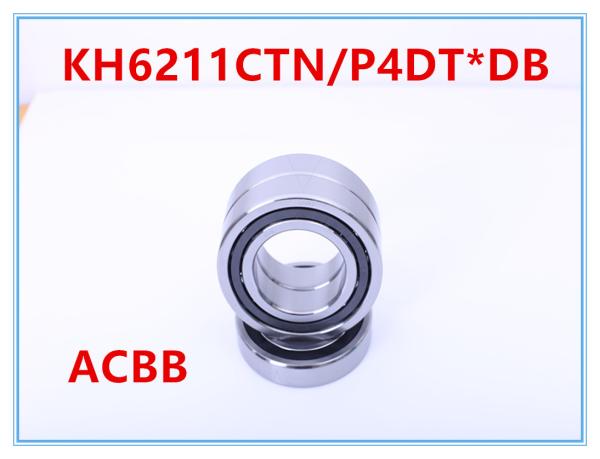

KH6211CTN/P4 DT*DB Machine Tool Spindle Bearing

Name: KH6211CTNP4 DTDB Machine Tool Spindle Bearing
Brand: ACBB
Price: 1 USD

China KH6211CTN/P4 DT*DB Machine Tool Spindle Bearing factory

Brand Name : ACBB

Model Number : KH6211CTN/P4 DT*DB

Certification : ISO9001 IATF16949

Place of Origin : China

MOQ : 20 PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Packaging Details : Company brand packaging.

Product name : Machine Tool Spindle Bearing

Model number : KH6211CTN/P4 DT*DB

Characteristic : High speed/High rigidity

Rotational speed : 4000RPM-6000RPM

Angle : C/AC/A5/E/A/B

Preload : Pre-tight in the middle

Rolling Body : Steel Ball/Ceramic Ball

Sealing structure : Open-ended/Double-sided seal

Contact Now

Machine Tool Spindle Bearing HYKH6211CTN P4 DT*DB is mainly used in CNC machining center machine tools and CNC machine tool spindle. 4,000 to 6,000 rpm. Imported ceramic ball, Kluberspeed BF72-23 oil, double-sealed structure, imported materials, etc. .

Ultra-high speed angular contact ball bearing made of imported materials

Bearing No	ACBB model	ACBB model	GMN model	GMN model	Dimensions(mm)			(KN) BasicRatedload		(RPM) Limitingspeed		Ceramic Ball(RPM) Limitingspeed
Bearing No	Steel Ball	Ceramic Ball	Steel Ball	Ceramic Ball	d	D	B	Cr(KN)	Cor(KN)	Oil	Grease	Oil	Grease
7002C	BH7002CTA 2RZ/P4 DT	BH7002CTA 2RZ/P4 HQ1 DT	KH6002 2RZ CTA/P4 DT	HYKH6002 2RZ CTA/P4 DT	15	32	9	6.20	3.40	60000	70000	76000	85000
7003C	BH7003CTA 2RZ/P4 DT	BH7003CTA 2RZ/P4 HQ1 DT	KH6003 2RZ CTA/P4 DT	HYKH6003 2RZ CTA/P4 DT	17	35	10	8.65	4.90	46000	65000	70000	80000
7004C	BH7004CTA 2RZ/P4 DT	BH7004CTA 2RZ/P4 HQ1 DT	KH6004 2RZ CTA/P4 DT	HYKH6004 2RZ CTA/P4 DT	20	42	12	10.40	6.00	40000	56000	60000	70000
7005C	BH7005CTA 2RZ/P4 DT	BH7005CTA 2RZ/P4 HQ1 DT	KH6005 2RZ CTA/P4 DT	HYKH6005 2RZ CTA/P4 DT	25	47	12	14.60	9.15	30000	45000	48000	65000
7006C	BH7006CTA 2RZ/P4 DT	BH7006CTA 2RZ/P4 HQ1 DT	KH6006 2RZ CTA/P4 DT	HYKH6006 2RZ CTA/P4 DT	30	55	13	15.00	10.20	26000	40000	40000	48000
7007C	BH7007CTA 2RZ/P4 DT	BH7007CTA 2RZ/P4 HQ1 DT	KH6007 2RZ CTA/P4 DT	HYKH6007 2RZ CTA/P4 DT	35	62	14	19.00	13.70	22000	36000	36000	43000
7008C	BH7008CTA 2RZ/P4 DT	BH7008CTA 2RZ/P4 HQ1 DT	KH6008 2RZ CTA/P4 DT	HYKH6008 2RZ CTA/P4 DT	40	68	15	20.40	16.00	20000	34000	30000	40000
7009C	BH7009CTA 2RZ/P4 DT	BH7009CTA 2RZ/P4 HQ1 DT	KH6009 2RZ CTA/P4 DT	HYKH6009 2RZ CTA/P4 DT	45	75	16	27.50	21.20	18000	30000	24000	38000
7010C	BH7010CTA 2RZ/P4 DT	BH7010CTA 2RZ/P4 HQ1 DT	KH6010 2RZ CTA/P4 DT	HYKH6010 2RZ CTA/P4 DT	50	80	16	28.50	22.80	17000	28000	22000	36000
7011C	BH7011CTA 2RZ/P4 DT	BH7011CTA 2RZ/P4 HQ1 DT	KH6011 2RZ CTA/P4 DT	HYKH6011 2RZ CTA/P4 DT	55	90	18	38.00	31.00	15000	24000	19000	32000
7012C	BH7012CTA 2RZ/P4 DT	BH7012CTA 2RZ/P4 HQ1 DT	KH6012 2RZ CTA/P4 DT	HYKH6012 2RZ CTA/P4 DT	60	95	18	39.00	33.50	14000	22000	18000	30000
7013C	BH7013CTA 2RZ/P4 DT	BH7013CTA 2RZ/P4 HQ1 DT	KH6013 2RZ CTA/P4 DT	HYKH6013 2RZ CTA/P4 DT	65	100	18	40	35.5	13000	20000	17000	28000
7014C	BH7014CTA 2RZ/P4 DT	BH7014CTA 2RZ/P4 HQ1 DT	KH6014 2RZ CTA/P4 DT	HYKH6014 2RZ CTA/P4 DT	70	110	20	50	43	12000	19000	16000	26000
7204C	BH7204CTA 2RZ/P4 DT	BH7204CTA 2RZ/P4 HQ1 DT	KH204 2RZ CTA/P4 DT	HYKH6204 2RZ CTA/P4 DT	20	47	14	14.6	8.15	32000	48000	43000	52000
7205C	BH7205CTA 2RZ/P4 DT	BH7205CTA 2RZ/P4 HQ1 DT	KH205 2RZ CTA/P4 DT	HYKH6205 2RZ CTA/P4 DT	25	52	15	15.6	9.3	28000	43000	40000	46000
7206C	BH7206CTA 2RZ/P4 DT	BH7206CTA 2RZ/P4 HQ1 DT	KH206 2RZ CTA/P4 DT	HYKH6206 2RZ CTA/P4 DT	30	62	16	23.2	14.6	24000	36000	30000	42000
7207C	BH7207CTA 2RZ/P4 DT	BH7207CTA 2RZ/P4 HQ1 DT	KH207 2RZ CTA/P4 DT	HYKH6207 2RZ CTA/P4 DT	35	72	17	25.5	18	20000	34000	26000	40000
7208C	BH7208CTA 2RZ/P4 DT	BH7208CTA 2RZ/P4 HQ1 DT	KH208 2RZ CTA/P4 DT	HYKH6208 2RZ CTA/P4 DT	40	80	18	32	22.4	18000	30000	24000	36000
7209C	BH7209CTA 2RZ/P4 DT	BH7209CTA 2RZ/P4 HQ1 DT	KH209 2RZ CTA/P4 DT	HYKH6209 2RZ CTA/P4 DT	45	85	19	33.5	24.5	17000	28000	22000	34000
7210C	BH7210CTA 2RZ/P4 DT	BH7210CTA 2RZ/P4 HQ1 DT	KH210 2RZ CTA/P4 DT	HYKH6210 2RZ CTA/P4 DT	50	90	20	43	31.5	16000	26000	20000	30000
7211C	BH7211CTA 2RZ/P4 DT	BH7211CTA 2RZ/P4 HQ1 DT	KH211 2RZ CTA/P4 DT	HYKH6211 2RZ CTA/P4 DT	55	100	21	46.5	37.5	14000	22000	18000	28000
7212C	BH7212CTA 2RZ/P4 DT	BH7212CTA 2RZ/P4 HQ1 DT	KH212 2RZ CTA/P4 DT	HYKH6212 2RZ CTA/P4 DT	60	110	22	55	44	13000	20000	16000	24000

KH6211CTN/P4 DT*DB Machine Tool Spindle Bearing
